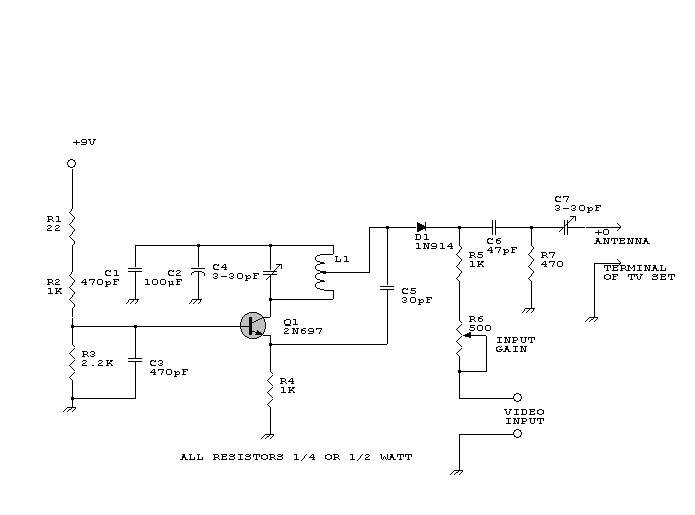

RF Modulator |
 |
 |
... |
|
|
... |
|
|
RF Modulator |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 22 |
Not Available | 01 |
| Resistor | 1K |
Not Available | 01 |
| Resistor | 2.2K |
Not Available | 01 |
| Resistor | 1K | Not Available | 02 |
| Resistor | 470 | Not Available | 01 |
| Resistor | 500 Pot | Not Available | 01 |
| Capacitor | 470pF | Not Available | 02 |
| Capacitor | 100uF | Not Available | 01 |
| Capacitor | 3-30pF Var. | Not Available | 02 |
| Capacitor | 30pF | Not Available | 01 |
| Capacitor | 47pF | Not Available | 01 |
| Diode | 1N914 | Available | 01 |
| Transistor | 2N697 | Not Available | 01 |
