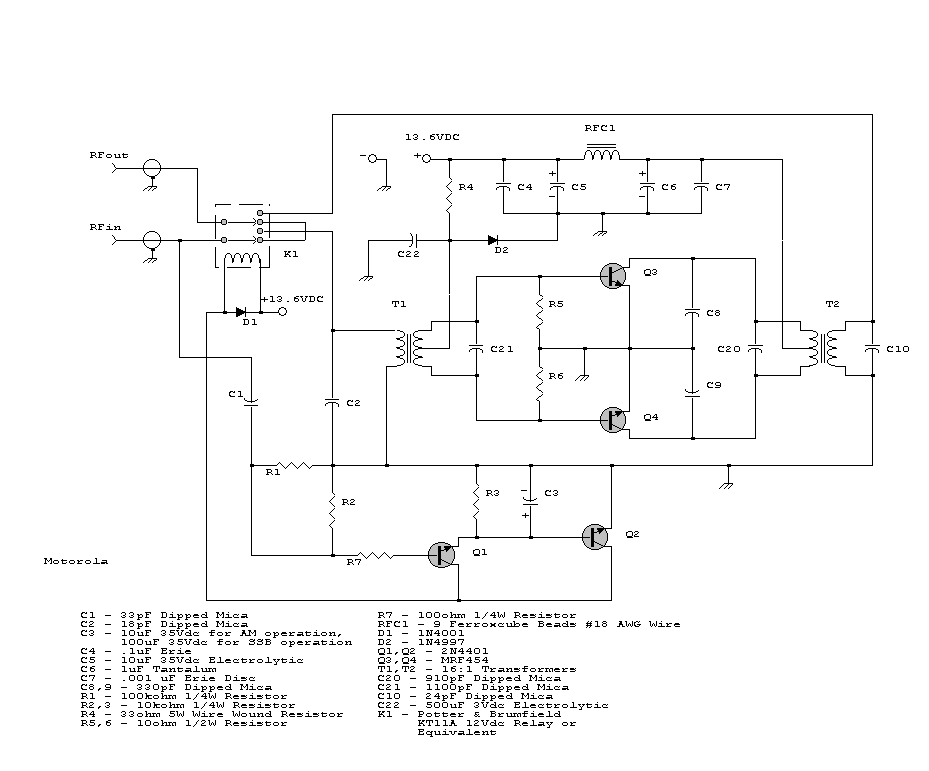

Amateur Radio Linear Amplifier 2-30MHz 140W |
 |
 |
... |
|
|
... |
|
|
Amateur Radio Linear Amplifier 2-30MHz 140W |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100K |
Not Available | 01 |
| Resistor | 10K |
Not Available | 02 |
| Resistor | 33, 5W |
Not Available | 01 |
| Resistor | 10, ½W | Not Available | 02 |
| Resistor | 100 | Not Available | 01 |
| Capacitor | 33pF | Not Available | 01 |
| Capacitor | 18pF | Not Available | 01 |
| Capacitor | 10uF, 35VDC | Not Available | 02 |
| Capacitor | 0.1uF | Not Available | 01 |
| Capacitor | 1uF | Not Available | 01 |
| Capacitor | 0.001uF | Not Available | 01 |
| Capacitor | 330pF | Not Available | 02 |
| Capacitor | 910pF | Not Available | 01 |
| Capacitor | 1100pF | Not Available | 01 |
| Capacitor | 24pF | Not Available | 01 |
| Capacitor | 500uF, 3VDC | Not Available | 01 |
| Diode | 1N4001 | Available | 01 |
| Diode | 1N4997 | Not Available | 01 |
| Transistor | 2N4401 | Available | 02 |
| Transitor | MRF454 | Available | 02 |
| Transformer | 16:1 | Not Available | 02 |
| Relay | 12VDC | Not Available | 01 |
