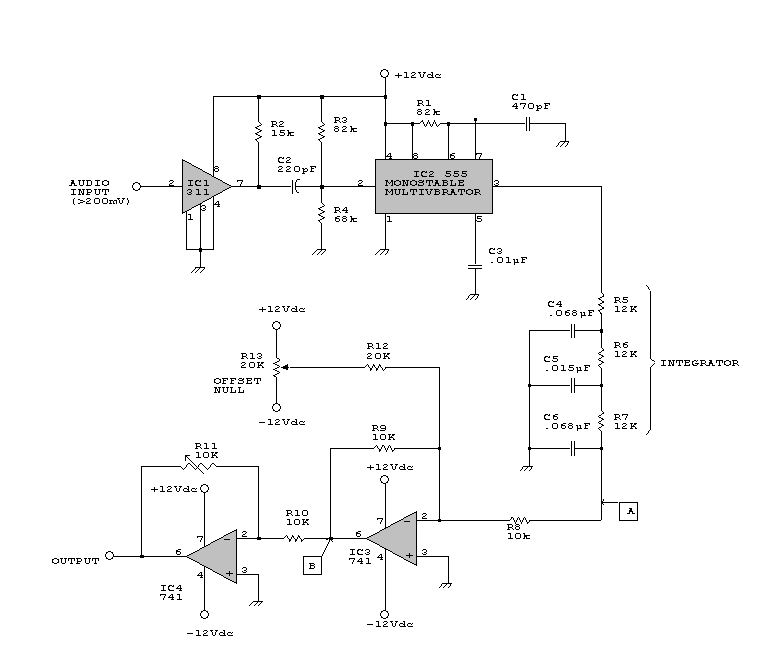

Telemetry Demodulator |
 |
 |
... |
|
|
... |
|
|
Telemetry Demodulator |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 15K |
Not Available | 01 |
| Resistor | 82K |
Not Available | 02 |
| Resistor | 68K |
Not Available | 01 |
| Resistor | 20K | Not Available | 01 |
| Resistor | 20K Pot | Not Available | 01 |
| Resistor | 12K | Not Available | 03 |
| Resistor | 10K | Not Available | 03 |
| Resistor | 10K Pot | Not Available | 01 |
| Capacitor | 220pF | Not Available | 01 |
| Capacitor | 470pF | Not Available | 01 |
| Capacitor | 0.01uF | Not Available | 01 |
| Capacitor | 0.068uF | Not Available | 02 |
| Capacitor | 0.015uF | Not Available | 01 |
| IC | LM311 | Available | 01 |
| IC | LM555 | Available | 01 |
| IC | LM741 | Available | 01 |
