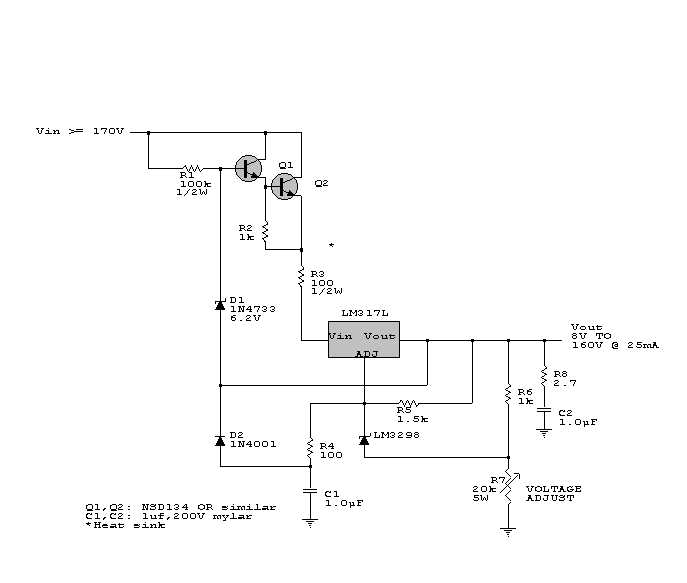

Precision High Voltage Regulator |
 |
 |
... |
|
|
... |
|
|
Precision High Voltage Regulator |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100K, ½W |
Not Available | 01 |
| Resistor | 1K |
Not Available | 02 |
| Resistor | 100, ½W |
Not Available | 02 |
| Resistor | 1.5K | Not Available | 01 |
| Resistor | 2.7 | Not Available | 01 |
| Resistor | 20K, 5W Pot | Not Available | 01 |
| Capacitor | 1uF | Not Available | 02 |
| Diode | 1N4001 | Available | 01 |
| Zener | 1N4733 | Available | 01 |
| Zener | LM3298 | Not Available | 01 |
| Regulator | LM317 | Available | 01 |
| Transistor | NSD134 | Not Available | 02 |
