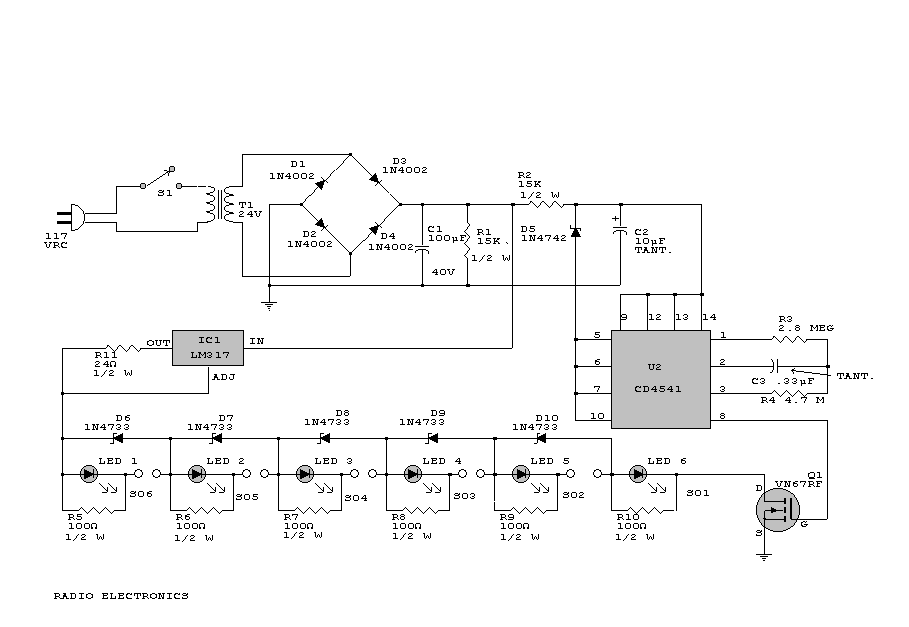

Versatile Battery Charger |
 |
 |
... |
|
|
... |
|
|
Versatile Battery Charger |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 15K |
Not Available | 02 |
| Resistor | 24 |
Not Available | 01 |
| Resistor | 2.8M |
Not Available | 01 |
| Resistor | 4.7M | Not Available | 01 |
| Resistor | 100 | Not Available | 06 |
| Capacitor | 100uF, 40V | Not Available | 01 |
| Capacitor | 10uF | Not Available | 01 |
| Capacitor | 0.33uF | Not Available | 01 |
| Diode | 1N4002 | Available | 04 |
| Zener | 1N4742 | Available | 01 |
| Zener | 1N4733 | Available | 06 |
| IC | LM317 | Available | 01 |
| IC | CD4541 | Available | 01 |
| Transformer | 6:1 | Not Available | 01 |
