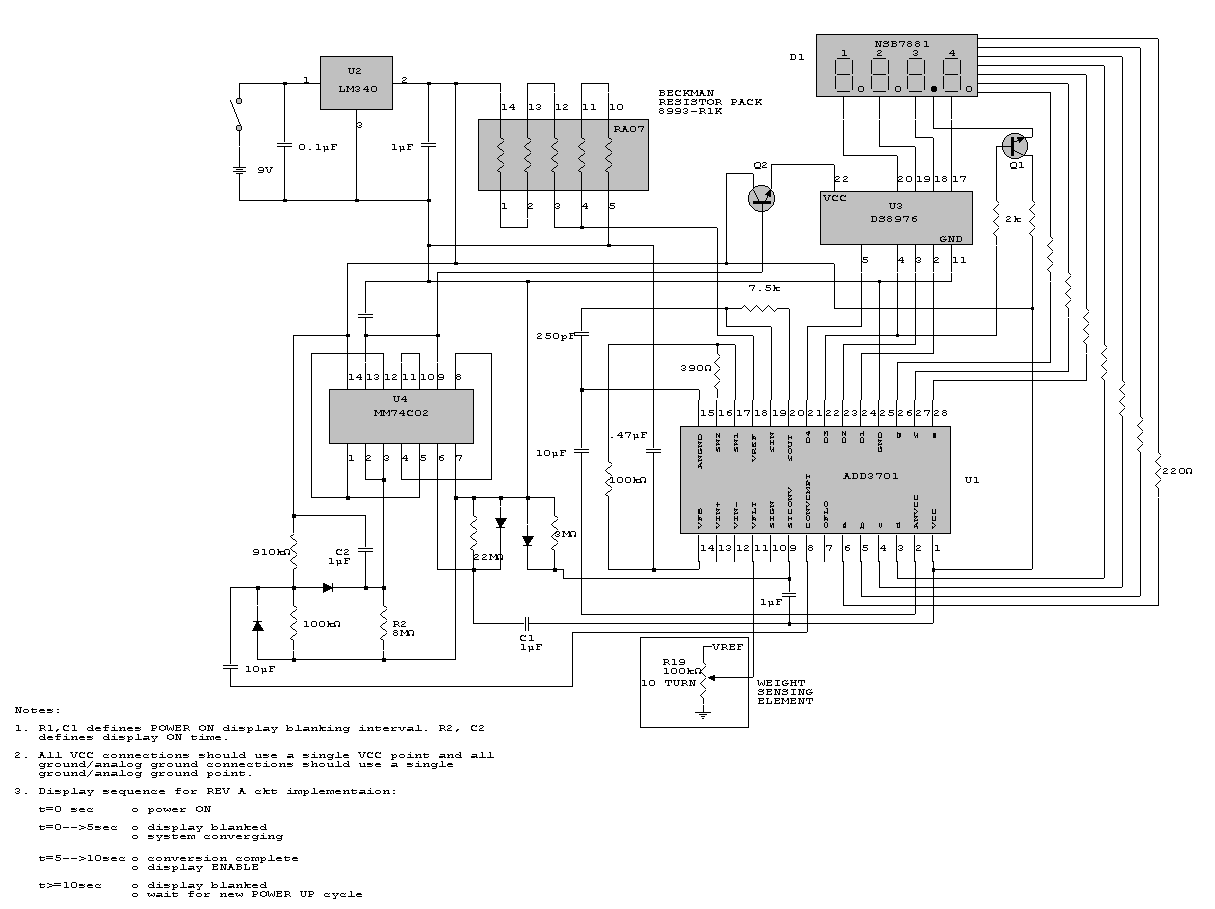

Digital Weight Scale |
 |
 |
... |
|
|
... |
|
|
Digital Weight Scale |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 1K |
Not Available | 05 |
| Resistor | 2K |
Not Available | 01 |
| Resistor | 220 |
Not Available | 08 |
| Resistor | 7.5K | Not Available | 01 |
| Resistor | 390 | Not Available | 01 |
| Resistor | 100K | Not Available | 02 |
| Resistor | 3M | Not Available | 01 |
| Resistor | 22M | Not Available | 01 |
| Resistor | 910K | Not Available | 01 |
| Resistor | 8M | Not Available | 01 |
| Resistor | 100K Pot | Not Available | 01 |
| Capacitor | 0.1uF | Not Available | 01 |
| Capacitor | 1uF | Not Available | 01 |
| Capacitor | 250pF | Not Available | 01 |
| Capacitor | 10uF | Not Available | 02 |
| Capacitor | 0.47uF | Not Available | 01 |
| Capacitor | 1uF | Not Available | 03 |
| Regulator | LM340 | Available | 01 |
| IC | DS8976 | Not Available | 01 |
| Display | NSB7881 | Not Available | 01 |
| IC | ADD3701 | Not Available | 01 |
| IC | MM74C02 | Available | 01 |
