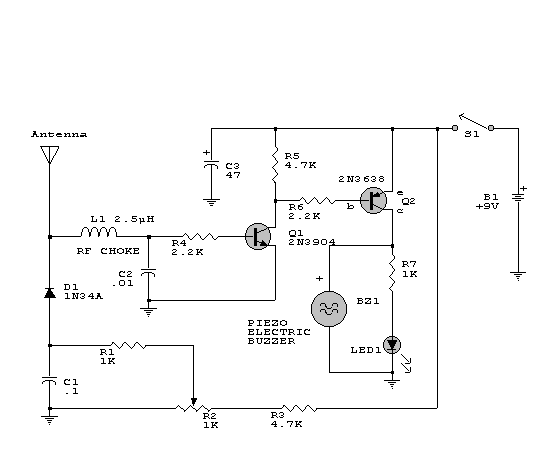

RF Sniffer |
 |
 |
... |
|
|
... |
|
|
RF Sniffer |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 1K |
Not Available | 01 |
| Resistor | 2.2K |
Not Available | 02 |
| Resistor | 4.7K |
Not Available | 02 |
| Resistor | 1K Pot | Not Available | 01 |
| Capacitor | 0.1uF | Not Available | 01 |
| Capacitor | 47uF | Not Available | 01 |
| Diode | 1N34 | Available | 01 |
| Transistor | 2N3904 | Available | 01 |
| Transistor | 2N3638 | Available | 01 |
| Inductor | 2.5uH | Not Available | 01 |
