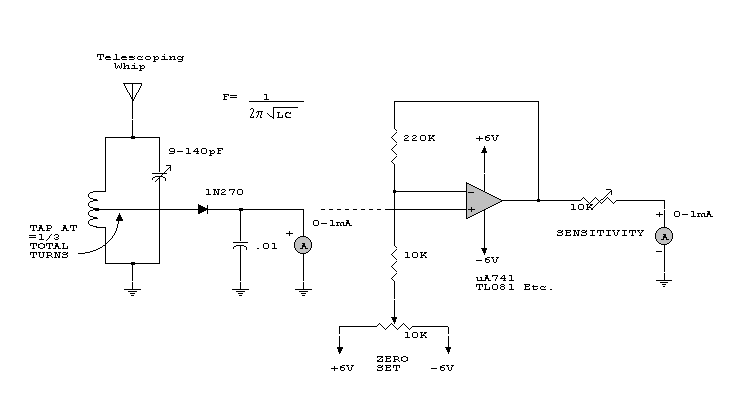

Field-Strength Meter II |
 |
 |
... |
|
|
... |
|
|
Field-Strength Meter II |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 220K |
Not Available | 01 |
| Resistor | 10K |
Not Available | 01 |
| Resistor | 10K Pot |
Not Available | 02 |
| Capacitor | 0.01uF |
Not Available | 01 |
| Capacitor | 9-140pF Trimmr |
Not Available | 01 |
| Diode | 1N270 |
Not Available | 01 |
| IC | 741 | Available | 01 |
