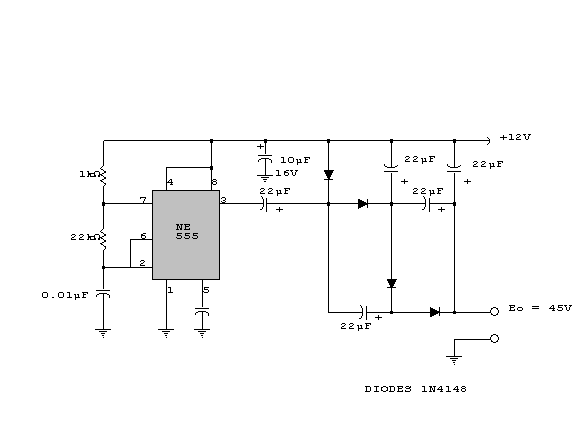

Low-Power DC Quadrupler |
 |
 |
... |
|
|
... |
|
|
Low-Power DC Quadrupler |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 1K |
Not Available | 01 |
| Resistor | 22K |
Not Available | 01 |
| Capacitor | 0.01uF |
Not Available | 01 |
| Capacitor | 10uF, 16V | Not Available | 01 |
| Capacitor | 22uF | Not Available | 05 |
| Diode | 1N4148 | Available | 04 |
| IC | 555 | Available | 01 |
