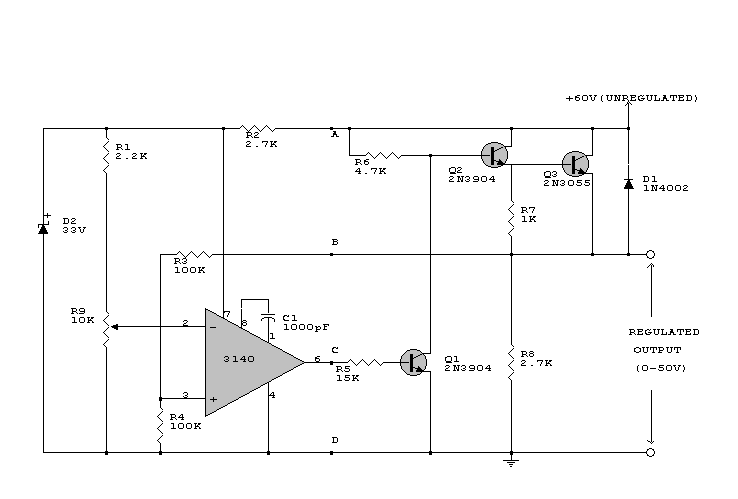

Variable Regulator - 0 To 50V |
 |
 |
... |
|
|
... |
|
|
Variable Regulator - 0 To 50V |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 2.2K |
Not Available | 01 |
| Resistor | 10K Pot |
Not Available | 01 |
| Resistor | 100K |
Not Available | 02 |
| Resistor | 2.7K | Not Available | 02 |
| Resistor | 4.7K | Not Available | 01 |
| Resistor | 15K | Not Available | 01 |
| Resistor | 1K | Not Available | 01 |
| Capacitor | 1uF | Not Available | 01 |
| Diode | 1N4002 | Available | 01 |
| Zener | 33V | Not Available | 01 |
| Transistor | 2N3904 | Available | 02 |
| Transistor | 2N3055 | Available | 01 |
| IC | 3140 | Not Available | 01 |
