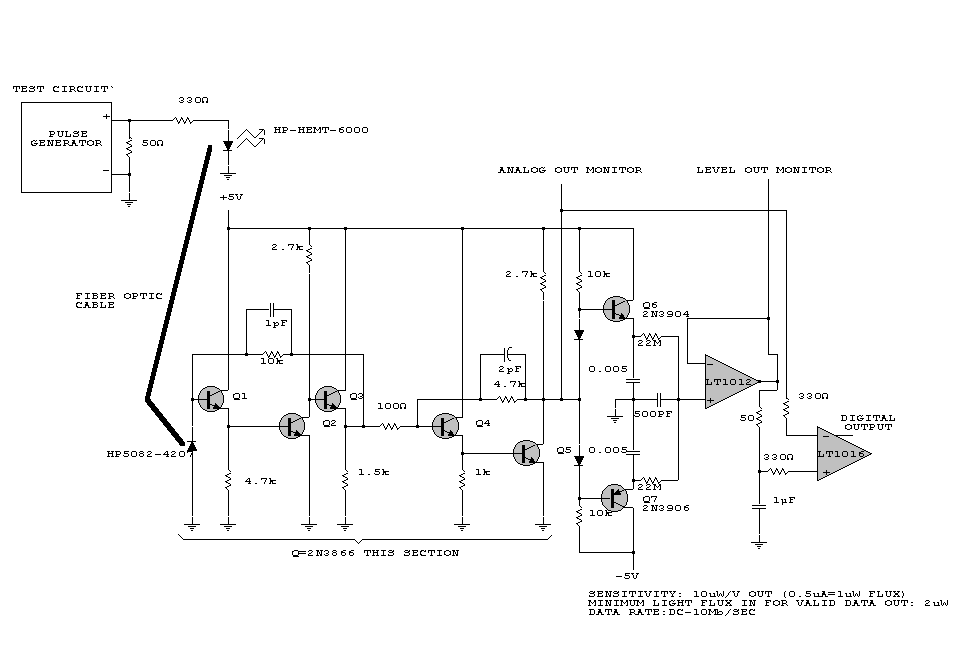

Fiberoptic Receiver - 10MHz |
 |
 |
... |
|
|
... |
|
|
Fiberoptic Receiver - 10MHz |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 50 |
Not Available | 02 |
| Resistor | 330 |
Not Available | 03 |
| Resistor | 4.7K |
Not Available | 02 |
| Resistor | 2.7K | Not Available | 02 |
| Resistor | 1.5K | Not Available | 01 |
| Resistor | 1K | Not Available | 01 |
| Resistor | 10K | Not Available | 02 |
| Resistor | 22M | Not Available | 02 |
| Capacitor | 1pF | Not Available | 01 |
| Capacitor | 2pF | Not Available | 01 |
| Capacitor | 0.005uF | Not Available | 02 |
| Capacitor | 500pF | Not Available | 01 |
| Capacitor | 1uF | Not Available | 01 |
| Diode | HP-HEMT-6000 | Not Available | 01 |
| Diode | HP5082-420 | Not Available | 01 |
| Transistor | 2N3866 | Not Available | 05 |
| Transistor | 2N3904 | Available | 01 |
| Transistor | 2N3906 | Available | 01 |
| IC | LT1012 | Not Available | 01 |
| IC | LT1016 | Not Available | 01 |
