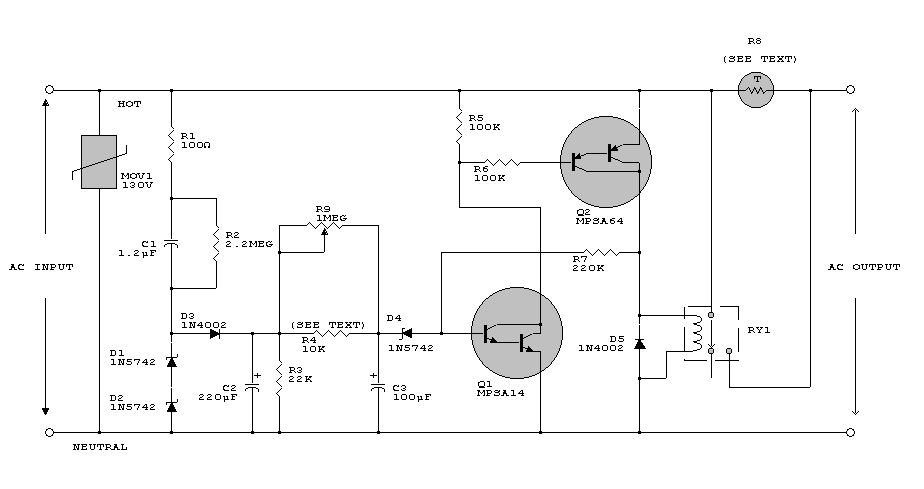

Inrush Current Limiter |
 |
 |
... |
|
|
... |
|
|
Inrush Current Limiter |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100 |
Not Available | 01 |
| Resistor | 2.2M |
Not Available | 01 |
| Resistor | 22K |
Not Available | 01 |
| Resistor | 10K | Not Available | 01 |
| Resistor | 100K | Not Available | 02 |
| Resistor | 220K | Not Available | 01 |
| Resistor | 1M Pot | Not Available | 01 |
| Capacitor | 1.2uF | Not Available | 01 |
| Capacitor | 220uF | Not Available | 01 |
| Capacitor | 100uF | Not Available | 01 |
| Diode | 1N5742 | Not Available | 03 |
| Diode | 1N4002 | Available | 02 |
| Transistor | MPSA14 | Available | 01 |
| Transistor | MPSA64 | Available | 01 |
