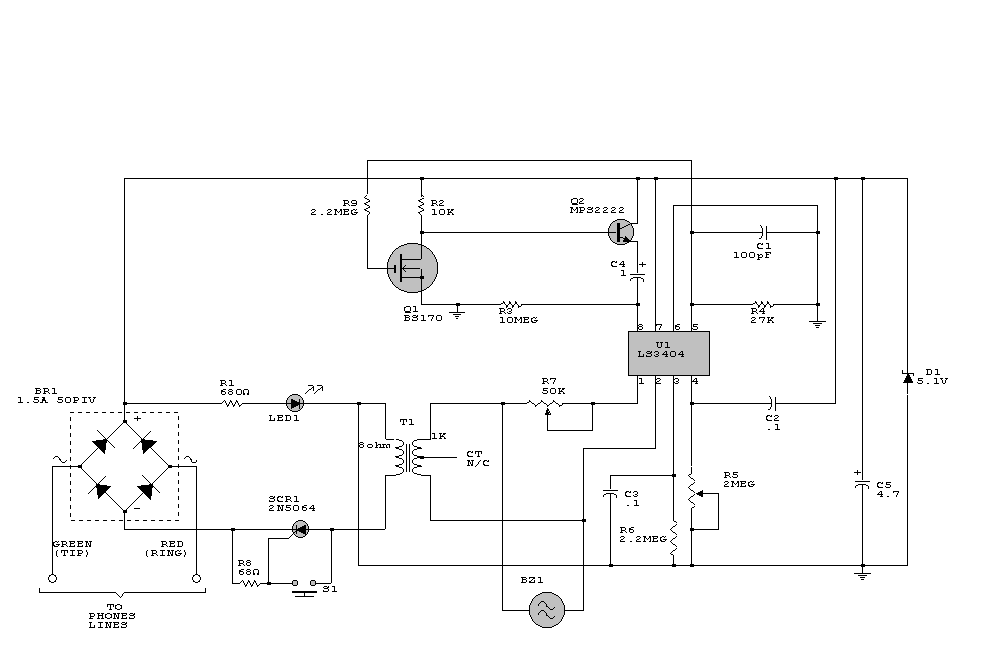

Music-On-Hold Box |
 |
 |
... |
|
|
... |
|
|
Music-On-Hold Box |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 2.2M |
Not Available | 02 |
| Resistor | 10K |
Not Available | 01 |
| Resistor | 10M |
Not Available | 01 |
| Resistor | 27K | Not Available | 01 |
| Resistor | 680 | Not Available | 01 |
| Resistor | 68 | Not Available | 01 |
| Resistor | 50K Pot | Not Available | 01 |
| Resistor | 2M Pot | Not Available | 01 |
| Capacitor | 1uF | Not Available | 01 |
| Capacitor | 100pF | Not Available | 01 |
| Capacitor | 0.1uF | Not Available | 02 |
| Capacitor | 4.7uF | Not Available | 01 |
| Transistor | MPS2222 | Available | 01 |
| Transistor | BS170 | Available | 01 |
| SCR | 2N5064 | Not Available | 01 |
| IC | LS3404 | Not Available | 01 |
| Bridge Rectifier | 1.5A, 50PIV | Not Available | 01 |
