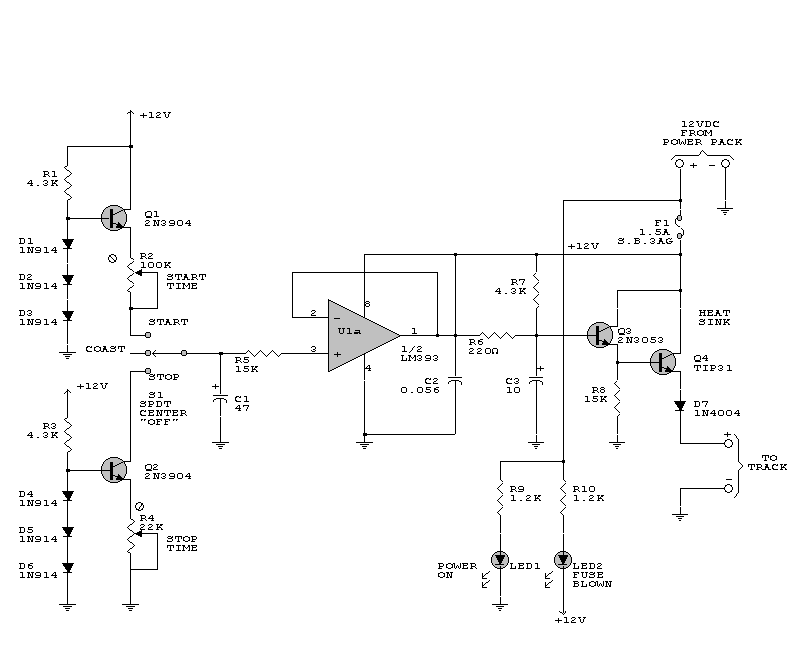

Model Train Throttle Control |
 |
 |
... |
|
|
... |
|
|
Model Train Throttle Control |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 4.3K |
Not Available | 03 |
| Resistor | 15K |
Not Available | 02 |
| Resistor | 1.2K |
Not Available | 02 |
| Resistor | 220 | Not Available | 01 |
| Resistor | 100K Pot | Not Available | 01 |
| Resistor | 22K Pot | Not Available | 01 |
| Capacitor | 47uF | Not Available | 01 |
| Capacitor | 0.056uF | Not Available | 01 |
| Capacitor | 10uF | Not Available | 01 |
| Diode | 1N914 | Available | 06 |
| Diode | 1N4004 | Available | 01 |
| Transistor | 2N3904 | Available | 02 |
| Transistor | 2N3053 | Not Available | 01 |
| Transistor | TIP31 | Not Available | 01 |
| IC | LM393 | Available | 01 |
