Simple Lie Detector |
 |
 |
... |
|
|
... |
|
|
Simple Lie Detector |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 4.7K |
Not Available | 01 |
| Resistor | 82K |
Not Available | 01 |
| CApacitor | 0.01uF |
Not Available | 01 |
| Transistor | 2N3904 | Available | 01 |
| Transistor | 2N3906 | Available | 01 |

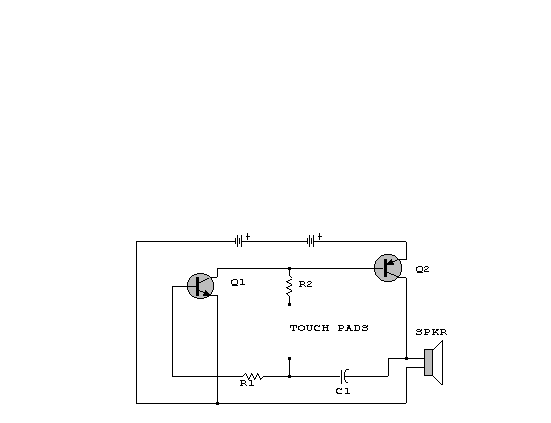

| Although not specified, the
input voltage looks like 3V DC since it's two batteries connected in series. |
|||
