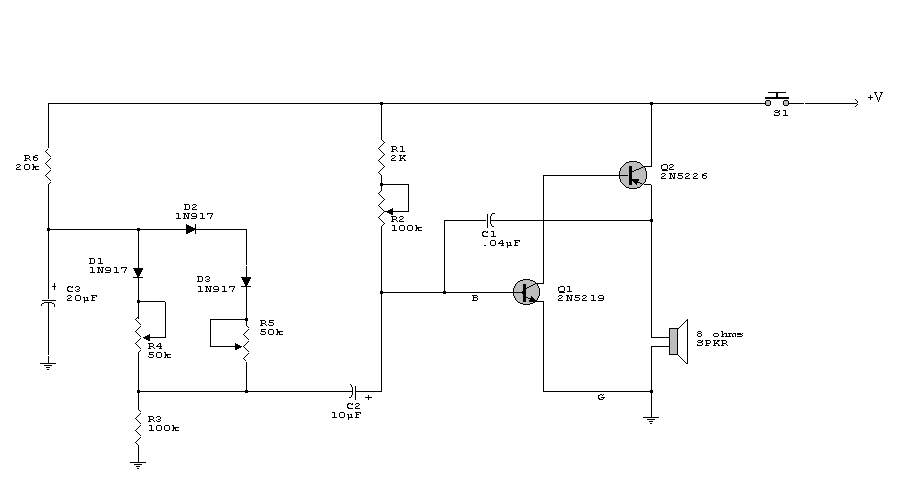

Sliding Tone Doorbell |
 |
 |
... |
|
|
... |
|
|
Sliding Tone Doorbell |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 20K |
Not Available | 01 |
| Resistor | 2K |
Not Available | 01 |
| Resistor | 100K | Not Available | 01 |
| Resistor | 50K Pot | Not Available | 02 |
| Resistor | 100K Pot | Not Available | 01 |
| Capacitor | 20uF | Not Available | 01 |
| Capacitor | 10uF | Not Available | 01 |
| Capacitor | 0.04uF | Not Available | 01 |
| Diode | 1N917 | Not Available | 03 |
| Transistor | 2N5219 | Not Available | 01 |
| Transistor | 2N5226 | Not Available | 01 |
| Speaker | 8 | Not Available | 01 |
