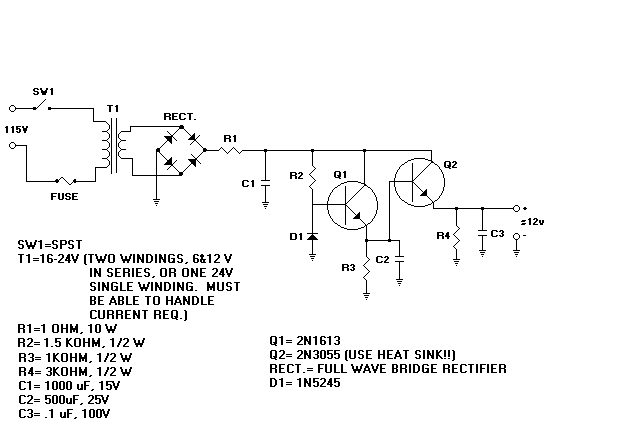

Power Supply - 12V @ 2A |
 |
 |
... |
|
|
... |
|
|
Power Supply - 12V @ 2A |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor [R1] | 1, 10W |
Not Available | 01 |
| Resistor [R2] | 1.5K, ½W |
Not Available | 01 |
| Resistor [R3] | 1K, ½W | Not Available | 01 |
| Resistor [R4] | 3K, ½W | Not Available | 01 |
| Capacitor [C1] | 1,000uF, 15V | Not Available | 01 |
| Capacitor [C2] | 500uF, 25V | Not Available | 01 |
| Capacitor [C3] | 0.1uF, 100V | Not Available | 01 |
| Diode [D1] | 1N5245 | Available | 01 |
| Diode [RECT] | Bridge Rectifier | Not Available | 01 |
| Transistor [Q1] | 2N1613 | Not Available | 01 |
| Transistor [Q2] | 2N3055 | Available | 01 |
| Transformer [T1] | 24V, 2A | Not Available | 01 |
| Fuse | 2.5A | Not Available | 01 |
