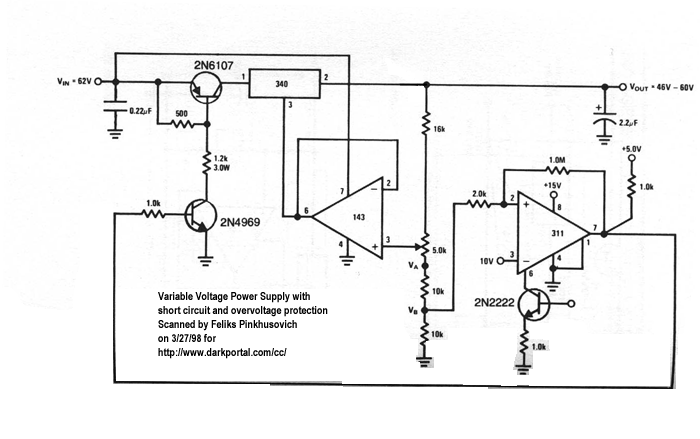

Variable Power Supply with short and overload protection |
 |
 |
... |
|
|
... |
|
|
Variable Power Supply with short and overload protection |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 500 | Not Available | 01 |
| Resistor | 1.2K, 3W | Not Available | 01 |
| Resistor | 1K | Not Available | 02 |
| Resistor | 16K | Not Available | 01 |
| Resistor | 10K | Not Available | 02 |
| Resistor | 2K | Not Available | 01 |
| Resistor | 1M | Not Available | 01 |
| Resistor | 5K Pot | Not Available | 01 |
| Capacitor | 0.22uF | Not Available | 01 |
| Capacitor | 2.2uF | Not Available | 01 |
| Regulator | 340 | Not Available | 01 |
| Transistor | 2N6107 | Not Available | 01 |
| Transistor | 2N4969 | Not Available | 01 |
| Transistor | 2N2222 | Available | 01 |
| IC | 143 | Not Available | 01 |
| IC | 311 | Available | 01 |
