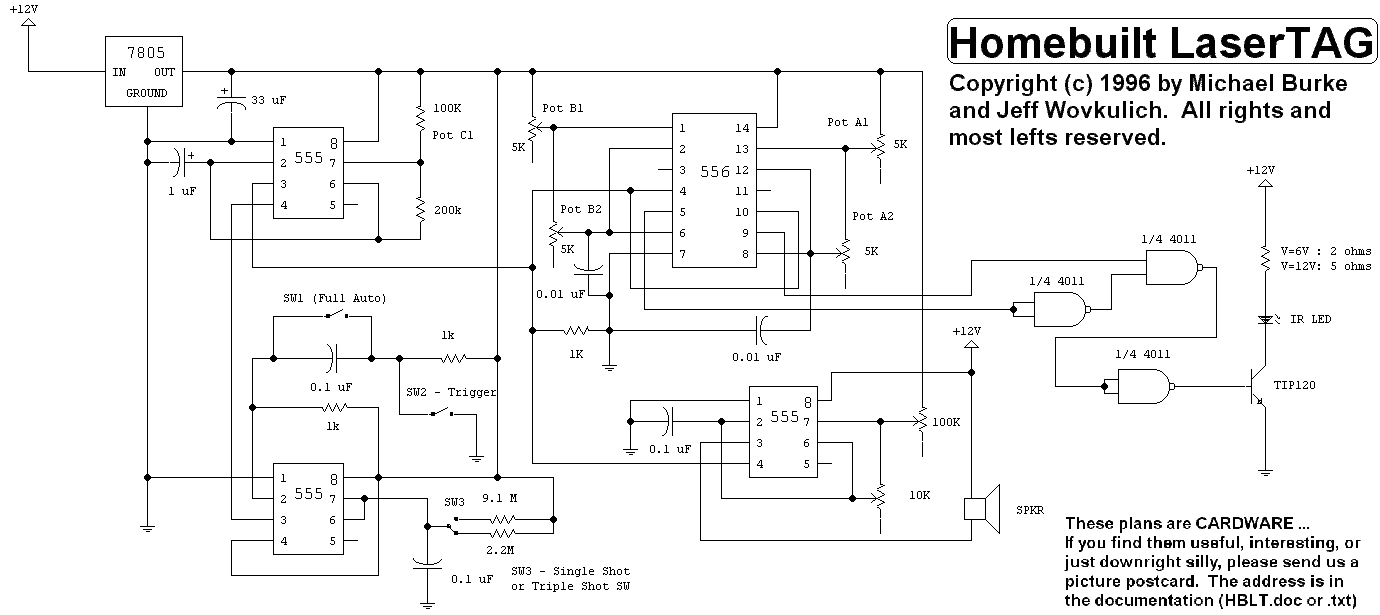

Lazer Tag |
 |
 |
... |
|
|
... |
|
|
Lazer Tag |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100K Pot | Not Available | 02 |
| Resistor | 200K | Not Available | 01 |
| Resistor | 5K Pot | Not Available | 04 |
| Resistor | 1K | Not Available | 03 |
| Resistor | 9.1M | Not Available | 01 |
| Resistor | 2.2M | Not Available | 01 |
| Resistor | 10K Pot | Not Available | 01 |
| Capacitor | 33uF | Not Available | 01 |
| Capacitor | 1uF | Not Available | 01 |
| Capacitor | 0.01uF | Not Available | 02 |
| Capacitor | 0.1uF | Not Available | 03 |
| Regulator | 7805 | Available | 01 |
| IC | 555 | Available | 03 |
| IC | 556 | Available | 01 |
| IC | 4011 | Available | 01 |
| Transistor | TIP120 | Not Available | 01 |
| Diode | IR LED | Not Available | 01 |
