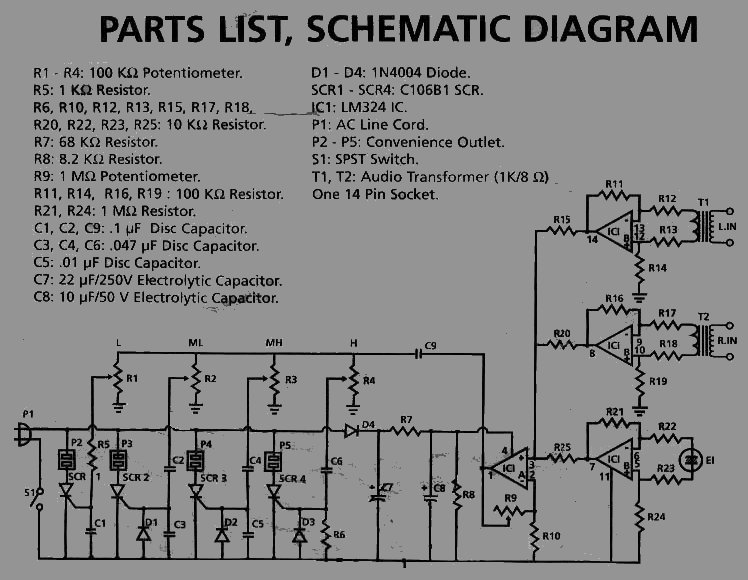

Color Organ - 4 Channels |
 |
 |
... |
|
|
... |
|
|
Color Organ - 4 Channels |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100K Pot | Not Available | 04 |
| Resistor | 1M Pot | Not Available | 01 |
| Resistor | 1K | Not Available | 01 |
| Resistor | 10K | Not Available | 11 |
| Resistor | 68K | Not Available | 01 |
| Resistor | 8.2K | Not Available | 01 |
| Resistor | 100K | Not Available | 04 |
| Resistor | 1M | Not Available | 02 |
| Capacitor | 0.1uF | Not Available | 03 |
| Capacitor | 0.047uF | Not Available | 03 |
| Capacitor | 0.01uF | Not Available | 01 |
| Capacitor | 22uF, 250V | Not Available | 01 |
| Capacitor | 10uF, 50V | Not Available | 01 |
| Diode | 1N4004 | Available | 04 |
| SCR | C106B1 | Available | 04 |
| IC | LM324 | Available | 01 |
| Transformer | Audio, 1K:8 | Not Available | 02 |
| Microphone | Standard [El] | Not Available | 01 |
