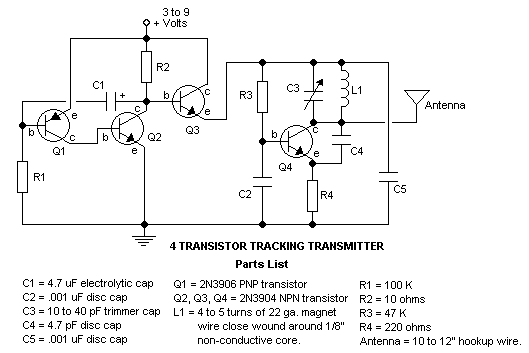

Tracking Transmitter - 2 |
 |
 |
... |
|
|
... |
|
|
Tracking Transmitter - 2 |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100K | Not Available | 01 |
| Resistor | 10 | Not Available | 01 |
| Resistor | 47K | Not Available | 01 |
| Resistor | 220 | Not Available | 01 |
| Capacitor | 4.7uF | Not Available | 01 |
| Capacitor | 0.001uF | Not Available | 02 |
| Capacitor | 10-40pF trimmer | Not Available | 01 |
| Capacitor | 4.7pF | Not Available | 01 |
| Transistor | 2N3906 | Available | 01 |
| Transistor | 2N3904 | Available | 03 |
| Inductor | *see text | Not Available | 01 |
| Antenna | 10"-12" wire | Not Available | 01 |
