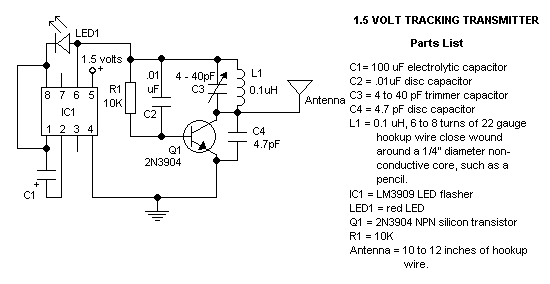

Tracking Transmitter |
 |
 |
... |
|
|
... |
|
|
Tracking Transmitter |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 10K | Not Available | 01 |
| Capacitor | 100uF | Not Available | 01 |
| Capacitor | 0.01uF | Not Available | 01 |
| Capacitor | 4 - 40pF trimmer | Not Available | 01 |
| Capacitor | 4.7pF disc | Not Available | 01 |
| Inductor | 0.1uH | Not Available | 01 |
| IC | LM3909 | Available | 01 |
| Diode | LED | Not Available | 01 |
| Transistor | 2N3904 | Available | 01 |
| Antenna | 10" - 12" wire | Not Available | 01 |
