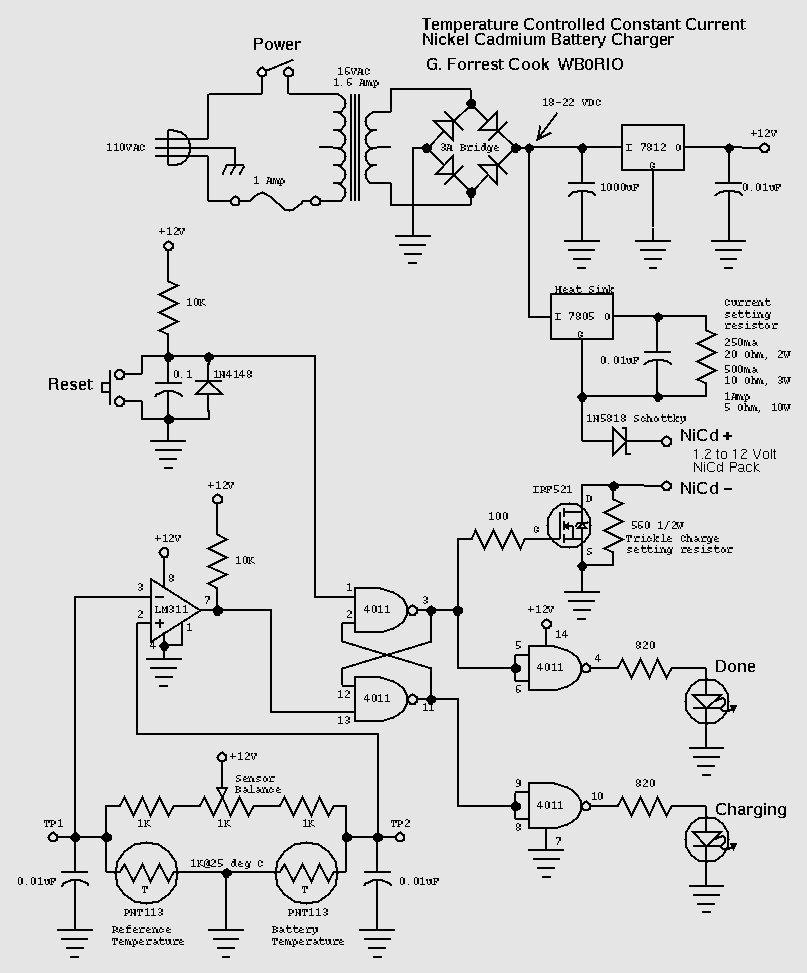

Temperature Controlled NiCad Charger |
 |
 |
... |
|
|
... |
|
|
Temperature Controlled NiCad Charger |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 10K | Not Available | 02 |
| Resistor | 100 | Not Available | 01 |
| Resistor | 560, ½W | Not Available | 01 |
| Resistor | 820 | Not Available | 02 |
| Resistor | 1K | Not Available | 03 |
| Capacitor | 1,000uF | Not Available | 01 |
| Capacitor | 0.01uF | Not Available | 04 |
| Capacitor | 0.1uF | Not Available | 01 |
| Diode | Bridge, 3A | Not Available | 01 |
| Diode | 1N4148 | Available | 01 |
| Zener | 1N5818 | Not Available | 01 |
| Thermistor | PNT113 | Not Available | 02 |
| Resistor | 1K Pot | Not Available | 01 |
| Diode | LED | Not Available | 02 |
| Regulator | 7812 | Available | 01 |
| Regulator | 7805 | Available | 01 |
| Mosfet | IRF521 | Not Available | 01 |
| IC | 4011 | Available | 01 |
| IC | LM311 | Available | 01 |
