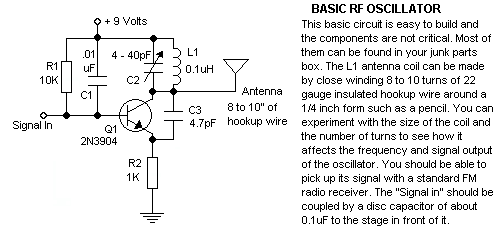

RF Oscillator |
 |
 |
... |
|
|
... |
|
|
RF Oscillator |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 10K | Not Available | 01 |
| Resistor | 1K | Not Available | 01 |
| Capacitor | 0.01uF | Not Available | 01 |
| Capacitor | 4.7pF | Not Available | 01 |
| Capacitor | 4-40pF Variable | Not Available | 01 |
| Inductor | 0.1uH | Not Available | 01 |
| Transistor | 2N3904 | Available | 01 |
