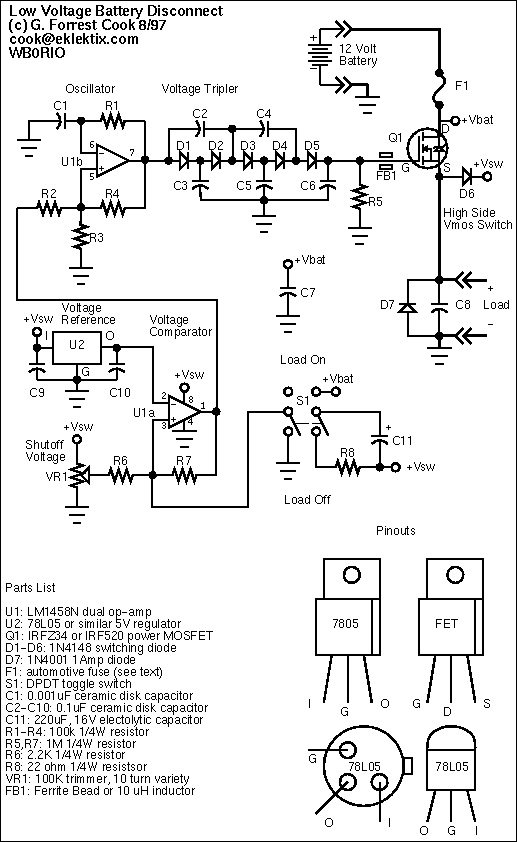

Low Voltage Battery Disconnect |
 |
 |
... |
|
|
... |
|
|
Low Voltage Battery Disconnect |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 100K, ¼W | Not Available | 04 |
| Resistor | 1M, ¼W | Not Available | 02 |
| Resistor | 2.2K, ¼W | Not Available | 01 |
| Resistor | 22, ¼W | Not Available | 01 |
| Resistor | 100K Trim | Not Available | 01 |
| Capacitor | 0.001uF | Not Available | 01 |
| Capacitor | 0.1uF | Not Available | 08 |
| Capacitor | 220uF, 16V | Not Available | 01 |
| Fuse | *see text | Not Available | 01 |
| Diode | 1N4001 | Available | 01 |
| Diode | 1N4148 | Available | 05 |
| Inductor | 10uH | Not Available | 01 |
| Transistor | IRFZ34 | Not Available | 01 |
| Regulator | 7805 | Available | 01 |
| IC | LM1458N | Available | 01 |
