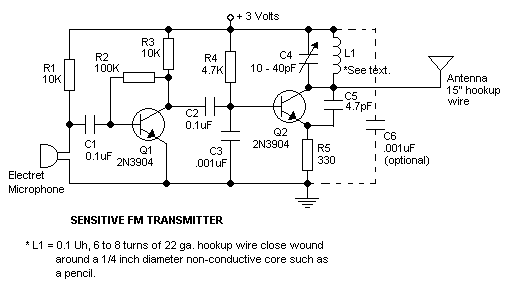

FM Transmitter - Sensitive |
 |
 |
... |
|
|
... |
|
|
FM Transmitter - Sensitive |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 10 K | Not Available | 02 |
| Resistor | 100 K | Not Available | 01 |
| Resistor | 4.7 K | Not Available | 01 |
| Resistor | 330 Ohm | Not Available | 01 |
| Capacitor | 0.1 uF | Not Available | 02 |
| Capacitor | 0.001 uF | Not Available | 01 |
| Capacitor | 4.7 pF | Not Available | 01 |
| Variable Capacitor | 10 to 40 pF | Not Available | 01 |
| Transistor | 2N3904 | Available | 02 |
| Microphone | Electret | Not Available | 01 |
