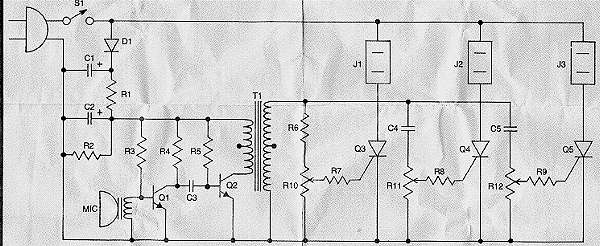

Color Organ - 3 Channels |
 |
 |
... |
|
|
... |
|
|
Color Organ - 3 Channels |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor [R1] | 47 K, ½ W | Not Available | 01 |
| Resistor [R2, R4] | 6.8 K, ½ W | Not Available | 01 |
| Resistor [R3, R5] | 1 M, ½ W | Not Available | 02 |
| Resistor [R6] | 3.3 K, ½ W | Not Available | 01 |
| Resistor [R7, R8, R9] | 1 K, ½ W | Not Available | 03 |
| Resistor [R10, R11, R12] | 10 K Pot | Not Available | 03 |
| Capacitor [C1] | 22 uF at 250 V | Not Available | 01 |
| Capacitor [C2] | 22 uF at 25 V | Not Available | 01 |
| Capacitor [C3] | 0.1 uF | Not Available | 01 |
| Capacitor [C4] | 0.01 uF | Not Available | 01 |
| Capacitor [C5] | 0.0047 uF | Not Available | 01 |
| Diode [D1] | 1N4004 | Available | 01 |
| Transistor [Q1, Q2] | 2N3904 | Available | 02 |
| SCR [Q3, Q4, Q5] | S106B1 | Available | 03 |
| Transformer [T1] | 10k : 600 Ohms | Not Available | 01 |
| Socket [J1, J2, J3] | AC ~120 V | Not Available | 03 |
