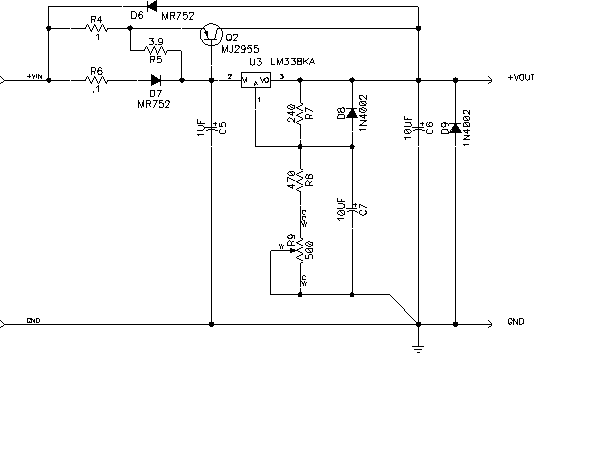

Regulator - 3 Terminal -- Boosted |
 |
 |
... |
|
|
... |
|
|
Regulator - 3 Terminal -- Boosted |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Resistor | 1 | Not Available | 01 |
| Resistor | 0.1 | Not Available | 01 |
| Resistor | 3.9 | Not Available | 01 |
| Resistor | 240 | Not Available | 01 |
| Resistor | 470 | Not Available | 01 |
| Resistor | 500 Pot | Not Available | 01 |
| Diode | MR572 | Not Available | 02 |
| Diode | 1N4002 | Available | 02 |
| Capacitor | 10uF | Not Available | 02 |
| Regulator | LM338KA | Not Available | 01 |
| Transistor | MJ2955 | Available | 01 |
