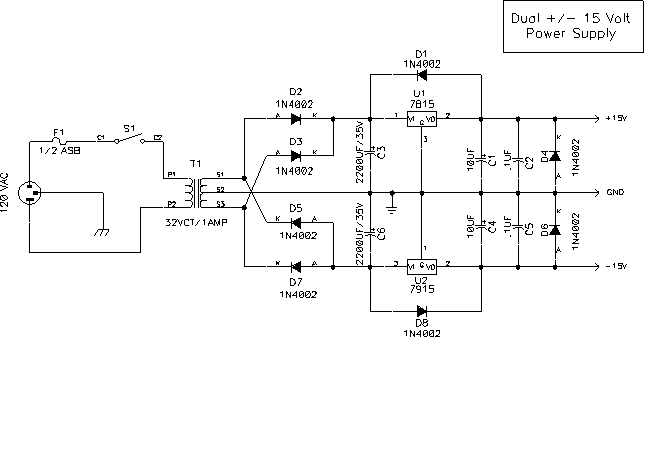

Power Supply - Dual ± 15V |
 |
 |
... |
|
|
... |
|
|
Power Supply - Dual ± 15V |
|
|
... |
|
| Parts List: | |||
| Component: | Value: | Datasheet: | Qty: |
| Fuse | ½A | Not Available | 01 |
| Transformer | 32V @ 1A | Not Available | 01 |
| Diode | 1N4002 | Not Available | 08 |
| Capacitor | 2,200uF, 35V | Not Available | 02 |
| Capacitor | 10uF | Not Available | 02 |
| Capacitor | 0.1uF | Not Available | 02 |
| Regulator | 7815 | Available | 01 |
| Regulator | 7915 | Available | 01 |
